Description

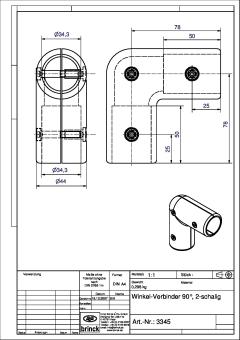

Double-shell pipe connector with two outlets for connecting two pipes with a 90° angle. With this pipe connector, two pipe ends are connected to form a 90° angle by clamping two half-shells. The pipe ends are drilled twice with Ø 9.5mm. The screw and sleeve are connected to each other through the holes. The pipe connector is therefore suitable for larger tensile forces.
Further information
Size in mm: 33,7
Size in inches: 1"
Bivalve: Yes
Material: Aluminum
Drilling of the pipe required: Yes
Information on surfaces and coatings
You can get our tube connectors in six different surface qualities. Through the targeted selection of surface finishes, you always get the right quality from us. Starting with simple, functional or colour-coated industrial railings for machine and plant construction or large-scale industrial plants to high-quality surfaces for use in buses and trains as well as in shipbuilding.
Depending on the quality requirements, our pipe connectors are available in the following surface finishes:
- raw
- trowal polished
- highly polished
- technically anodized E6 / EV1
- decoratively anodized E5 / EV1
- Coloured plastic powder-coated according to RAL
